Products
Transport Recorders

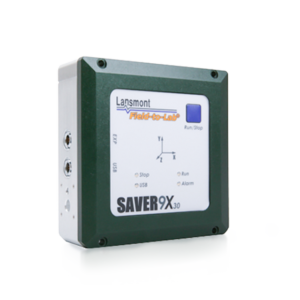

SAVER™ 9X30 – Shock & Vibration Field Data Recorder
The SAVER™ 9X30 is a high-performance, research-grade field data recorder designed for comprehensive shock, vibration, and environmental monitoring. With the ability to capture up to 9 dynamic channels—including a built-in triaxial accelerometer and support for 6 external sensors—it delivers unmatched flexibility for complex testing applications.
In addition to acceleration data, the system records temperature, humidity, and atmospheric pressure, with optional GPS integration for complete field-to-lab correlation. Equipped with 16-bit resolution, built-in signal conditioning, and high-speed sampling, the SAVER™ 9X30 ensures precise and reliable data capture for demanding environments.
Key Features
- Up to 9-channel dynamic data acquisition (internal + external sensors)
- Full acceleration time-history waveform recording
- User-programmable trigger thresholds & pre-trigger recording
- Continuous operation up to 30 days
- Integrated temperature, humidity & pressure sensors
- LED alarm indicators for critical event conditions
- USB connectivity for setup and data transfer
- Compatible with SaverXware software for analysis and reporting
Specifications (Highlights)
- Acceleration Range: 5g to 200g
- Sampling Rate: Up to 10,000 samples/sec
- Channels: 3 internal + 6 external (optional)
- A/D Conversion: 16-bit
- Temperature Range: -40°C to +60°C
- Humidity Range: 5% to 95% RH
- Pressure Range: 10 to 1100 mbar
- Size: 127 × 124 × 43 mm
- Weight: 1 kg
Applications
- Transport and packaging validation
- Multi-point shock & vibration analysis
- Field-to-lab correlation studies
- Environmental and logistics monitoring

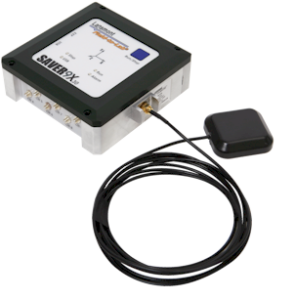

SAVER™ 9XGPS – Advanced Shock, Vibration & Location Data Recorder
The SAVER™ 9XGPS is an advanced version of the 9X30, integrating built-in GPS capabilities to capture position and speed data alongside shock, vibration, and environmental measurements. This enables complete spatial awareness and field-to-lab correlation, adding deeper insight into real-world transport and test conditions.
With support for up to 9 dynamic channels—including an internal triaxial accelerometer and 6 external sensor inputs—the system delivers high-resolution, multi-point data acquisition. Combined with temperature, humidity, and atmospheric pressure sensing, it provides a comprehensive view of both mechanical and environmental influences.
Key Features
- Full acceleration time-history waveform recording
- Integrated GPS for position & speed tracking
- Up to 9-channel dynamic data acquisition (internal + external)
- User-programmable trigger thresholds & pre-trigger recording
- Continuous operation up to 30 days
- Built-in temperature, humidity & pressure sensors
- LED alarm indicators for critical conditions
- USB connectivity for setup and data transfer
- Compatible with SaverXware software for advanced analysis
Specifications (Highlights)
- Acceleration Range: 5g to 200g
- Sampling Rate: Up to 10,000 samples/sec
- Channels: 3 internal + 6 external (optional)
- A/D Conversion: 16-bit
- GPS Runtime:
- ~100 hours (lithium batteries)
- ~50 hours (alkaline batteries)
- Temperature Range: -40°C to +60°C
- Humidity Range: 5% to 95% RH
- Pressure Range: 10 to 1100 mbar
- Size: 127 × 124 × 43 mm
- Weight: 1 kg
Applications
- Transport and logistics monitoring with location tracking
- Shock & vibration analysis with route correlation
- Packaging validation and field data mapping
- Environmental and motion-based performance studies

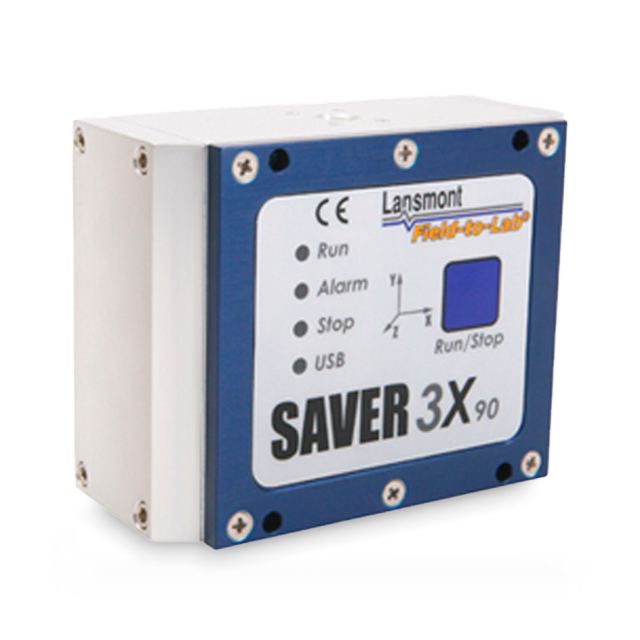

SAVER 3X90-Shock & Vibration Field Data Recorder
The SAVER™ 3X90 is a best-in-class, self-powered field data recorder designed for accurate measurement of shock, vibration, temperature, and humidity in real-world environments. Equipped with a triaxial accelerometer and 16-bit resolution, it delivers high-quality time-history data for detailed analysis.
With up to 90 days of continuous operation, the system intelligently records events based on user-defined trigger thresholds, ensuring critical data is captured without interruption. Integrated timestamps and compatibility with SaverXware software enable comprehensive analysis of impacts, drop events, vibration profiles, and environmental conditions.
Key Features
- Research-grade shock & vibration data recording
- Full acceleration time-history waveform capture
- User-programmable trigger thresholds & pre-trigger recording
- Continuous operation up to 90 days
- Built-in temperature & humidity sensors
- LED shock alarm indicator
- USB connectivity for setup and data transfer
- Compact, rugged, and field-ready design
Specifications (Highlights)
- Acceleration Range: 5g to 200g
- Sampling Rate: Up to 5000 samples/sec
- Sensor Type: Triaxial piezoelectric
- A/D Conversion: 16-bit
- Temperature Range: -40°C to +60°C
- Humidity Range: 5% to 95% RH
- Size: 95 × 74 × 43 mm
- Weight: 473 g
Applications
- Packaging and transport testing
- Drop and impact analysis
- Vehicle and logistics monitoring
- Environmental condition tracking

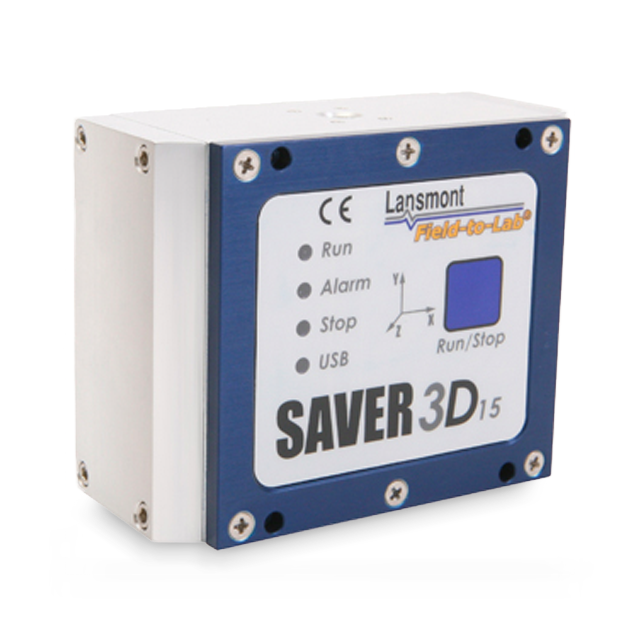

SAVER 3D15 –Low Frequency Shock & Vibration Field Data Recorder
The SAVER™ 3D15 is specifically designed for applications requiring DC response and low-frequency measurement, making it ideal for capturing long-duration acceleration events. Equipped with triaxial MEMS accelerometers, it accurately records constant and low-frequency signals commonly found in demanding environments such as aerospace, rail, and vehicle testing.
With up to 15 days of continuous operation, the system intelligently captures critical events based on user-defined triggers. Integrated temperature and humidity sensing, along with precise time-stamped data, ensures comprehensive analysis using SaverXware software.
Key Features
- Full acceleration time-history waveform recording
- MEMS accelerometers with DC response capability
- Optimized for low-frequency and long-duration events
- User-programmable trigger thresholds & pre-trigger recording
- Continuous operation up to 15 days
- Built-in temperature & humidity sensors
- LED shock alarm indicator
- USB connectivity for setup and data transfer
- Compact, rugged, and field-ready design
Specifications (Highlights)
- Acceleration Range: 5g to 50g
- Sampling Rate: Up to 5000 samples/sec
- Sensor Type: Triaxial MEMS
- A/D Conversion: 16-bit
- Frequency Response: DC to selected filter range
- Temperature Range: -40°C to +60°C
- Humidity Range: 5% to 95% RH
- Size: 95 × 74 × 43 mm
- Weight: 473 g
Applications
- Low-frequency vibration and motion analysis
- Aerospace and flight testing
- Rail coupling and transport studies
- Vehicle crash and long-duration event monitoring
- Amusement ride dynamics and safety validation

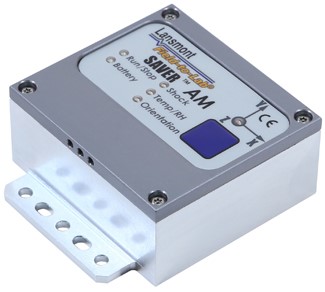

SAVER AM – SAVER™ AM – Advanced Asset Monitoring Data Logger
The SAVER™ AM is a high-performance, autonomous data logger designed to monitor the condition and movement of critical assets throughout the supply chain. Built with a rugged aluminum chassis and powered by a rechargeable platform, it ensures reliable tracking of shock, vibration, and environmental conditions during transport.
Equipped with a triaxial accelerometer, the system captures full acceleration time-history data, while integrated sensors for temperature, humidity, pressure, tilt, and light provide a complete picture of real-world handling and environmental exposure. This enables businesses to validate shipment integrity and identify potential risks across logistics operations.
Key Features
- Full triaxial acceleration time-history waveform recording
- Autonomous, rechargeable operation for long-term monitoring
- User-programmable trigger thresholds & pre-trigger recording
- Integrated environmental sensing:
- Temperature, Humidity, Pressure
- Tilt/Orientation & Light detection
- LED indicators for shock, environment, and battery status
- USB connectivity for setup and data transfer
- Compatible with SaverXware software for analysis and reporting
- Rugged, compact design with IP67 protection
Specifications (Highlights)
- Acceleration Range: 100g / 200g
- Sampling Rate: Up to 3000 samples/sec
- Sensor Type: Triaxial piezoelectric
- A/D Conversion: 12-bit
- Temperature Range: -20°C to +60°C
- Humidity Range: 5% to 95% RH
- Pressure Range: 10 to 1100 mbar
- Light Measurement: 0 to 2000 Lux
- Tilt Detection: ±45°
- Size: 71 × 91 × 33 mm
- Protection: IP67, CE Certified
Applications
- Supply chain and logistics monitoring
- High-value asset tracking
- Packaging validation and transport studies
- Shock & vibration risk assessment during shipping
